Outdoor Integrated All in One Solar Street Light

Solar street light is powered by Sunshine, turned on and off automatically by sensing the nightfall and the daylight. Solar (photovoltaic) cells generate direct current by using sunlight as a source of energy.Batteries store the solar energy during the day to power the lights at night
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • YC-LHY

  • YC

Outdoor Integrated All in One Solar Street Light


Our Outdoor Integrated All in One Solar Street Light represents a state-of-the-art solution for outdoor illumination, combining functionality, efficiency, and sustainability. Designed to harness the power of the sun, this solar street light offers a reliable and environmentally friendly lighting option for various outdoor settings.

Featuring an all-in-one design, our solar street light integrates the solar panel, LED light source, battery, and controller into a single unit, simplifying installation and reducing maintenance efforts. With no need for external wiring or power sources, our outdoor all in one solar street light offers flexibility in placement, allowing for easy installation in areas without access to conventional power grids.

Equipped with high-quality LED bulbs, our all in one solar street light provides bright and uniform illumination for enhanced visibility and safety. The integrated solar panel efficiently converts sunlight into electricity, ensuring reliable performance even in low-light conditions. Additionally, our solar LED street light is designed to withstand outdoor elements, featuring a durable housing that protects the components from dust, moisture, and other environmental factors.

As a reputable supplier of outdoor integrated solar lights, we offer customizable solutions to meet specific project requirements. Whether for residential neighborhoods, commercial complexes, or public parks, our all in one solar street light provides cost-effective and sustainable lighting solutions. With competitive integrated solar street light prices and reliable performance, our product is the ideal choice for outdoor lighting needs. Trust in our expertise to provide innovative and efficient solutions for your outdoor lighting projects.


Product Features:

● All in one solar street light

● Using famous brand-bridgelux ,Led SMD3030/5054 to produce, lumens reach 180LM/W

● with Funtion: lighting control + Radar sensor + timing control

●high quality monocrystalline silicon solar panel, good low light performance,high conversion efficiency,can also be charged in cloudy and rainy days

●Die-casting aluminum body

● offer 3 years warranty , lifetime cost and price maintenance.


ALL in one solar street light


Parameters:

Product   model

YC-LHY-300W

YC-LHY-400W

YC-LHY-500W

Power

300W

400W

500W

size

703*365*87mm

810*365*87mm

916*365*87mm

Battery

Lithium LiFePO4 battery

3.2V 40 000mah

Lithium LiFePO battery 3.2V 50 000mah

Lithium LiFeP04 battery

3.2V 60 000mah

LED  QTY

306PCS SMD3030

408PCS SMD3030

510PCS SMD3030

Material

Die-casting Aluminum

CCT

3000K-6500K

LED

bridgelux SMD3030 led

Light   effect

180 Lm/w

Controller

lighting control + Radar sensor + timing control

working time

12-15 hours

Charging time

4-6 hours

Sensor Area

10-15 meters

IP  grade

IP65

Radar sensor

when people come, 100% power full light, when people go, after 10s, the light 10% power

Package

760*415*130mm/1PC

865*415*130/1PC

970*415*130mm/1PC

N.W.: 2.72kg

G.W.:2.98kg

G.W.:3.38kg

Product Details

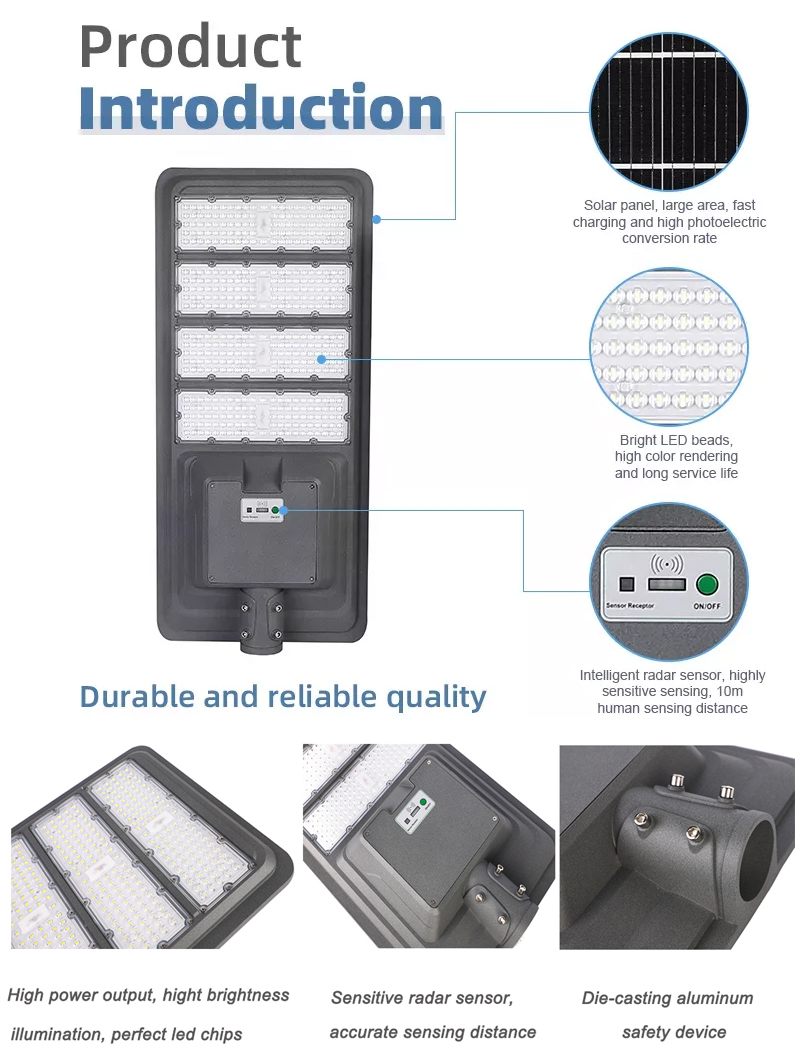

product detail

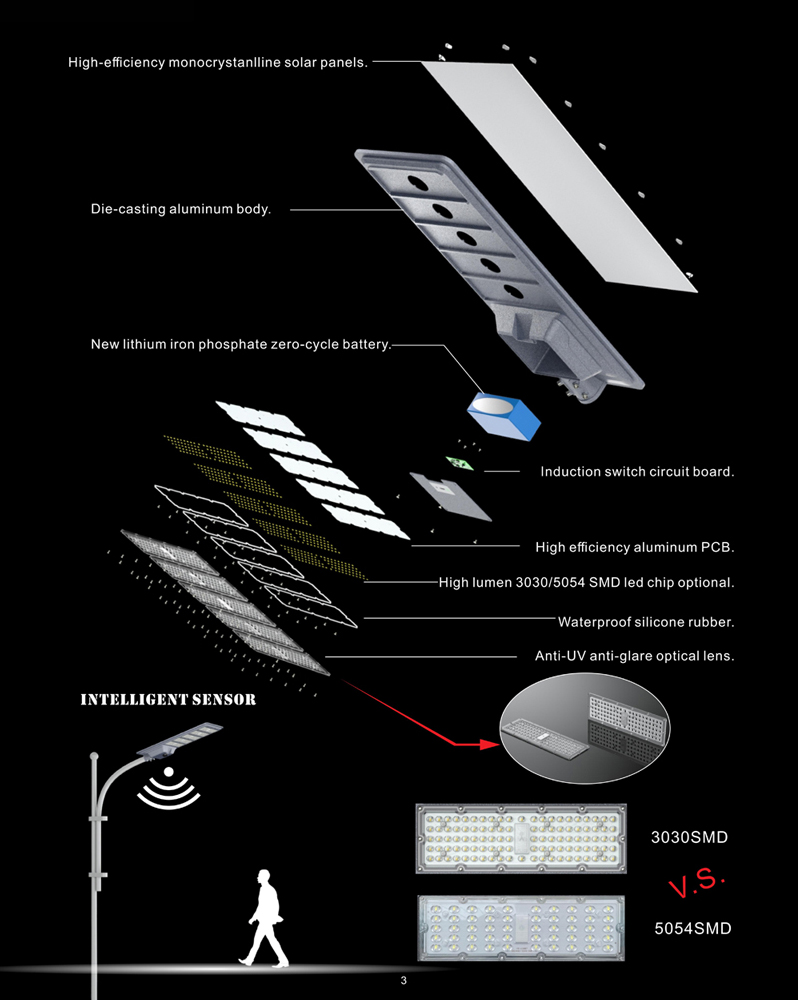

Exploded Views

Exploded picture for solar street light


Al solar street light Views

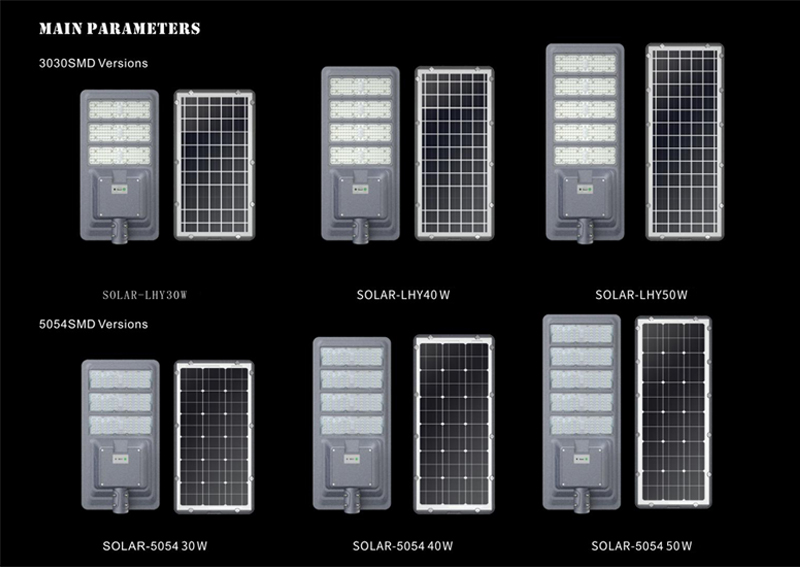

face picture for solar street light


Application

High-quality professional LED  production,Focus on lighting engineering construction, lamps can be used for a variety of occasions professional lighting technology to provide customers with high-quality lighting production services

Such as Road, Highway, Courtyard, Outdoor, Etc.

solar street light case


Installation instructions

  1. installation must be done by professional electricicans

  2. Don't take apart the product, it may be dangerous

  3. don't stare at the light with naked eyes,. it is harmful to your eyes

  4. solar panel should be installed towards sunshine, and it must  not be sheltered by trees or other covers

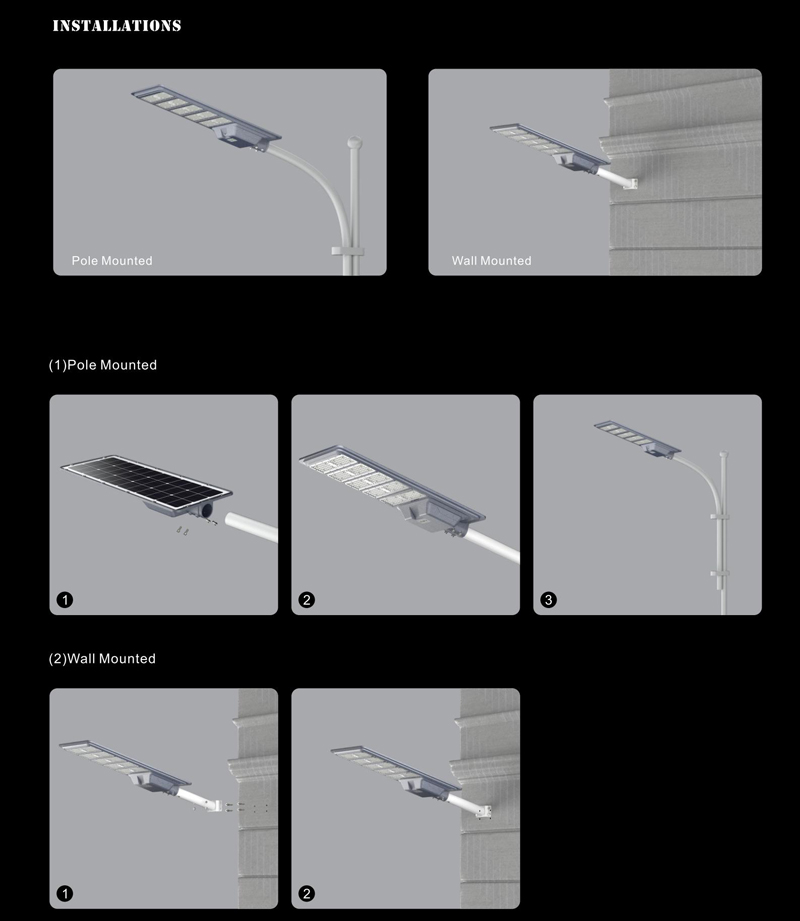

Installation

install information


Packing


Packing


Why choose us?

  1. smaller MOQ:  only 1 pcs, welcome Customer test the sample

  2. accept kinds of payment ways:  T/T or western union or Paypal or RIA

  3. offer 3 years warranty.

  4. shorter produce time: only 3-5 days for sample, 7-10 days for bulk

high quality warranty

A: more than 8 years experience for producing led solar light,

B,Quality is our life, all goods will be 100% aging & 100% test before delivery,

C,following our Year-end statistics,the Defective rate is under 0.2%,

D;as an export-oriented factory, from coming material inspection,sample produce and  test,Mass production ,aging test;packaged and delivery it, have strict operating requirement
